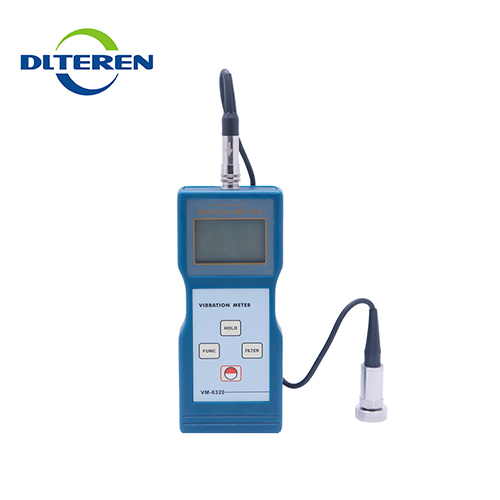

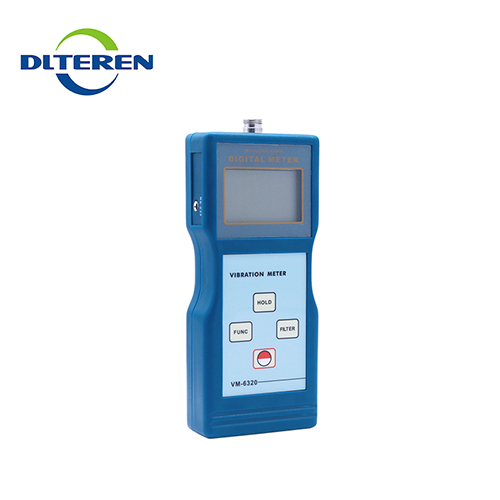

High performance digital measure precision sensitivity accelerometers vibration meter

  • Usage:Auto Testing Machine
  • Output:AC output 2.0V peak
  • Power:4 x 1.5VAA size battery
  • Accuracy:±(5%n+2) digits
  • Product description:
  • INQUIRY

Product parameters

Specifications

Display:

4 digits, 18 mm LCD Measured values and makers(units, 10, and battery symbol)

Transducer :

Piezoelectric accelerometer

Parameters measured: Velocity, Acceleration, and displacement

Measurement range:

Speed:

true value of 0.01 -19.99 cm/s

acceleration

0.1 -199.9m/s

Displacement

0 .001- 1 .999mm

Frequency range:

Acceleration:

10Hz. to 1kHz.
In '1' mode 10Hz. to 10kHz.
In '10'mode for bearing condition check

Velocity:

10 Hz- 1KHz

Displacement:

10Hz- 1KHz

Accuracy:

±(5%n+2) digits

Power:

4 x 1.5VAA size battery

Output:

AC output 2.0V peak full scale(load resistance: above 10k)

Operating conditions:

Temperature:

0 -50

Humidity:

< 90%RH

Size:

160x68x32mm

Weight:

181g(without batteries)
