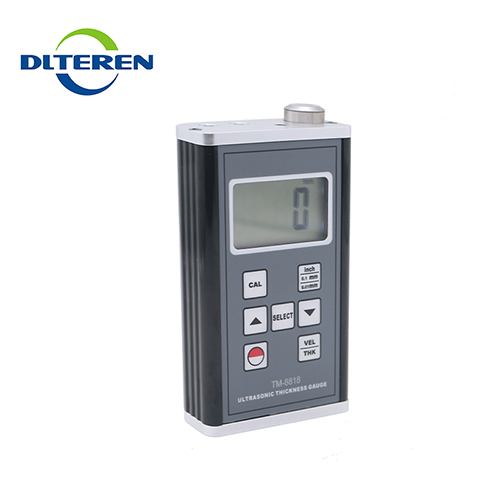

Ultrasonic Thickness Meter

  • Excellent quality digital micron ultrasonic thickness meter
  • Excellent quality digital micron ultrasonic thickness meter
  • Excellent quality digital micron ultrasonic thickness meter
Excellent quality digital micron ultrasonic thickness meterExcellent quality digital micron ultrasonic thickness meterExcellent quality digital micron ultrasonic thickness meter

Excellent quality digital micron ultrasonic thickness meter

  • Velocity Range:1000~9999m/s
  • Resolution:0.1mm/0.01mm/0.001inch
  • Accuracy:±(0.5%H+0.05)(H is the thickness of the material being measured).
  • Operating Condition:Temp. 0~50°C,Humidity <80%RH
  • Product description:
  • INQUIRY

The thickness meter adopts the principle of pulse reflection ultrasonic measurement, which is suitable for measuring the thickness of various materials which can be reflected from the back of the ultrasonic wave at a constant velocity. This meter can measure all kinds of plates and processing components accurately.



Specifications

Display:

4 digits,10 mm LCD

Sensor:

ultrasonic 5MHzф10

Test range:

0.75~400mm (45# steel)

Velocity Range:

1000~9999m/s

Resolution:

0.1mm/0.01mm/0.001inch

Accuracy:

±(0.5%H+0.05(H is the thickness of the material being measured).

Power Supply:

2xAA battery

Operating Condition:

Temp. 0~50°CHumidity <80%RH

Size:

130x75x32mm

Weight:

about 164g (excluding batteries)




How to measure its thickness by the velocity known ?
1. Press the power key "E", open the meter.
2. Press the sound speed key "N", display the last sound speed value. Press Plus Key or minus key, adjust the sound speed value to the known sound speed material of the known sound speed material. Each press Plus Key or minus key, the sound speed value will change 10m/s, if press Plus Key or minus key for 4 seconds, the sound speed value change amount is 100m/s.
3. A few coupling agents were coated on the measured points, and the ultrasonic sensor "B" was well coupled to the tested material. If the coupling is good, the coupling light  will light, the reading on the monitor is the thickness of the material to be measured.

How to measure the thickness by a sample of known thickness?
Firstly, adjust the sound speed to a certain value and then measure the sample with known thickness to see if the measured thickness is the same as that of the sample. If the thickness of the sample is larger than the thickness of the known sample, the sound velocity should be reduced. On the contrary, if the measured thickness is smaller than the thickness of the known sample, the sound velocity should be increased. By adjusting the sound speed, the thickness measured is the same as that of the sample. This sound velocity is recorded for use in the next measurement of the same material.

Notice:
1. When there is a large error in the measurement, please check it firstly.
1). Whether the material code or the sound speed is set correctly.
2). Calibration.
3) There may be sand holes and Blowholes in the tested materials.
2. Do not disassemble the meter without authorization. The wrong repair method will not only cause artificial damage, but also make you lose the right to guarantee.
