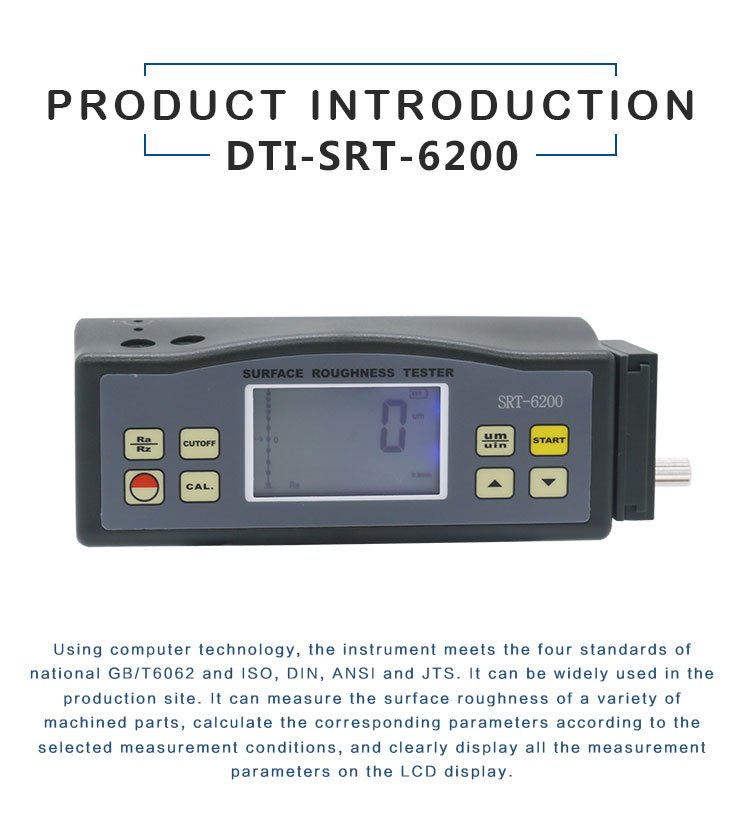

Product parameters: |
|||
Display: |
blue backlight, 4 - bit display, 10mmLCD |
||
Measurement range: |
Ra:0.05-10.00um/1.000-400.0uinch |
||
Precision: |
≤±10% |
||
Variability of the indication: |
≤ 6% |
||
Sensor: |
Measurement principle: |
inductor |
|
|
Radius: |
10μm |
|
|
Material: |
16mN (1.6gf) |
|
|
Angle: |
90° |
|
|
Longitudinal radius: |
48mm |
|
|
Maximum drive stroke: |
17.5mm/0.7inch |
|
|
Sampling length: |
0.25mm, 0.8mm, 2.5mm |
|
Resolving power: |
0.001μm: |
When the measured value is less than 10μm. |
|
|
0.01μm: |
When the measured value of 10 mu m is less than 100 μm. |
|
|
0.1μm: |
When the measured value is more than 100 μm. |
|
Evaluation length: |
1-5 |
||
Working environment |
Temperature: |
0-50 degrees centigrade |
|
|
Humidity: |
< 85%RH |
|
|
Shape size: |
140 x 52 x 48mm |
|
|
Net weight: |
about 420g |
Matters needing attention:
Avoid collision, severe vibration, dust, humidity, oil pollution, strong magnetic field and so on; sensors are precision parts of instruments, and should be carefully protected. After each use, the sensor should be put back into the packaging box. The random standard template should be carefully protected so as to avoid the calibration error after scratching.
Q:How long will you get our reply?
A: We will contact you as soon as possible but within 12 hours.
Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Please tell me your detailed requirements, we will send to you as early as we can.
Q: How soon can we arrange your production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.
Q:In what area can your products be used?
A:Teren ultrasonic flow meters and ultrasonic water meters are widely applicable to water supply and drainage,industrial process control,sewage and plant effluent treatment,agricultural irrigation,etc.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7-15 days , it is according to quantity and your requirements.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not free charge.
