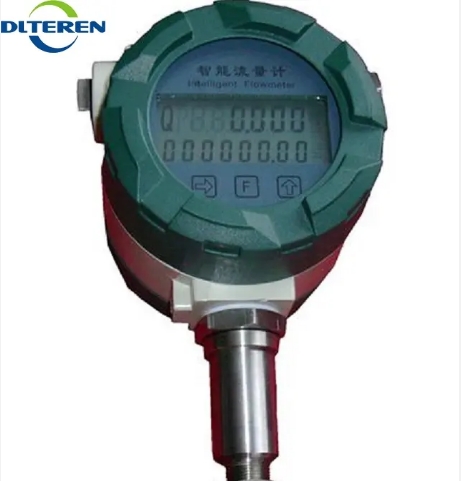

Turbine flow meter

High accuracy turbine flow meter liquid flow measurement turbine flow meter

Single output: 4-20mA ,RS485,RS23
MediumTemperature: -40°C~+350°C
nstall type: Flanged / Clamp / Thread
Pipe size: DN4mm-DN500mm
Product description:
INQUIRY

TEREN-TFM series turbine flow meter is a new kind of flow meter, which is especially used to measure the

flow of fuel oil, such as petroleum, gasoline, diesel, kerosene. It adapts the advanced technologies of flow meter at home and abroad. Its design has been optimized to have many characteristics, such as simple structure, light weight, high accuracy, good repeatability, sensitive reaction, easy installation, etc. Nowadays, it is widely used in various fields, e.g. petroleum, chemical industry, scientific research, national defense, etc.

Features of best price high accuracy turbine flow meter china

High accuracy: generally up to ± 1% R, ± 0.5% R, high-precision up ± 0.2% R;
Good repeatability, short-term repeatability of up to 0.05% to 0.2%
No zero drift, anti-jamming
Signal resolution and strong,receive a high frequency signal (3-4kHz)
Wide range of degrees, medium and large caliber up to 1:20, the small diameter of 1:10;
Compact and lightweight, easy installation and maintenance, flow capacity;
Easily made from high-pressure type instrument;
OEM can acceptable
Can be made into the type, suitable for large diameter measurement, pressure loss, low price,
do not stop out, easy installation and maintenance.

Diameter(mm)	DN4-500mm
Accuracy	±1%R±0.5%R
meter material	304 stainless steel,316Lstainless steel
Medium temperature	-20oC-110oC
Ambient condition	temperature10+55,relative humidity590,pressure86106Kpa
Output signal	4 ~ 20mADC current signal
Power supply	+12 VDC, +24 VDC (optional)
Signal transmission line	2×0.32 wires
Transmission distance	≤1000m
Transmission line interface	Inner thread M20×1.5
Explosion-proof class	ExdIIBT6
Protection class	IP65,IP67,IP68 (optional)

Model		Suffix Code							Description
Teren-TFM	Y -050-1.6-FSA-S-N.								Model Example
Type	Y	…………………………………							Local display without signal output, Battery supply
	B	…………………………………							Local display with 4-20mA output, 24VDC supply
	P	…………………...….…………							Pulse output without local display, 12-24VDC supply
	C	…………………...….…………							4-20mA output without local display 24VDC supply
Size		-004…………………...….……							4mm
		-006…………………...….……							6mm
		-010…………………...….……							10mm
		-015…………………...….……							15mm
		-020…………………...….……							20mm
		-025…………………...….……							25mm
		-032…………………...….……							32mm
		-040…………………...….……							40mm
		-050…………………...….……							50mm
		-065…………………...….……							65mm
		-080…………………...….……							80mm
		-100…………………...….……							100mm
		-125…………………...….……							125mm
		-150…………………...….……							150mm
		-200…………………...….……							200mm
Liquid Pressure (MPa)			-1.0…………………………						PN. -1.0, 2.0, 2.5, 4.0, 16, 25, 35, 42 etc
Connection				F………………………					Flange connection (DN40-200mm)
				T………………………					Thread connection (DN4-40mm)
				9………………………					Customization
Flow range					S……………………				Standard flow range
					W…………………				Wide flow range
Accuracy						A…………………			1.0%
						B…………………			0.5%
Material							-S………………		SS304
							-L………………		SS316
							-9………………		Customization
Explosion-proof marker								-N……………	No explosion proof
								-E……………	ExdIIBT6
