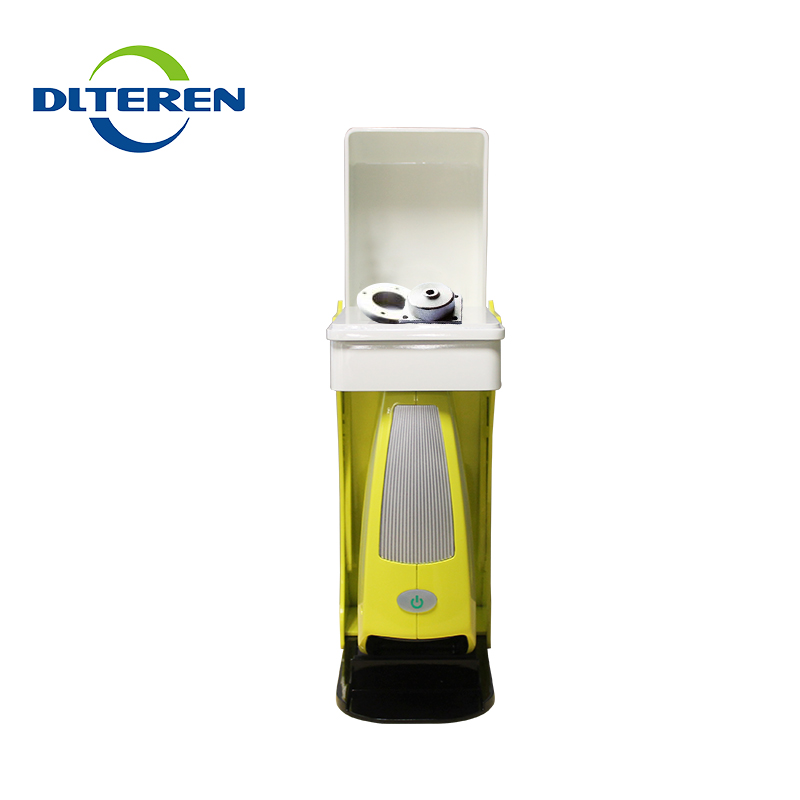

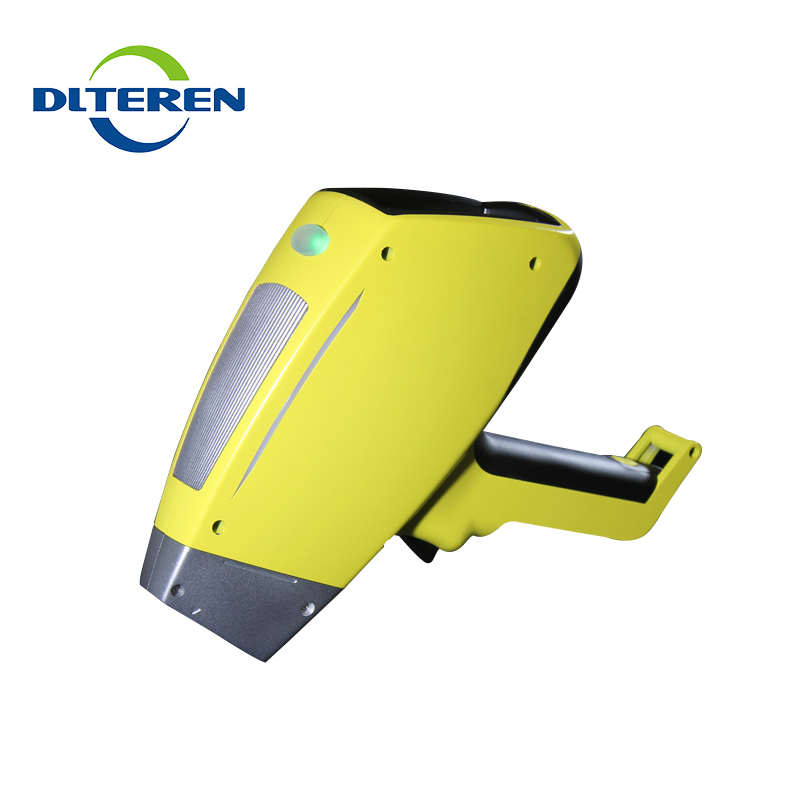

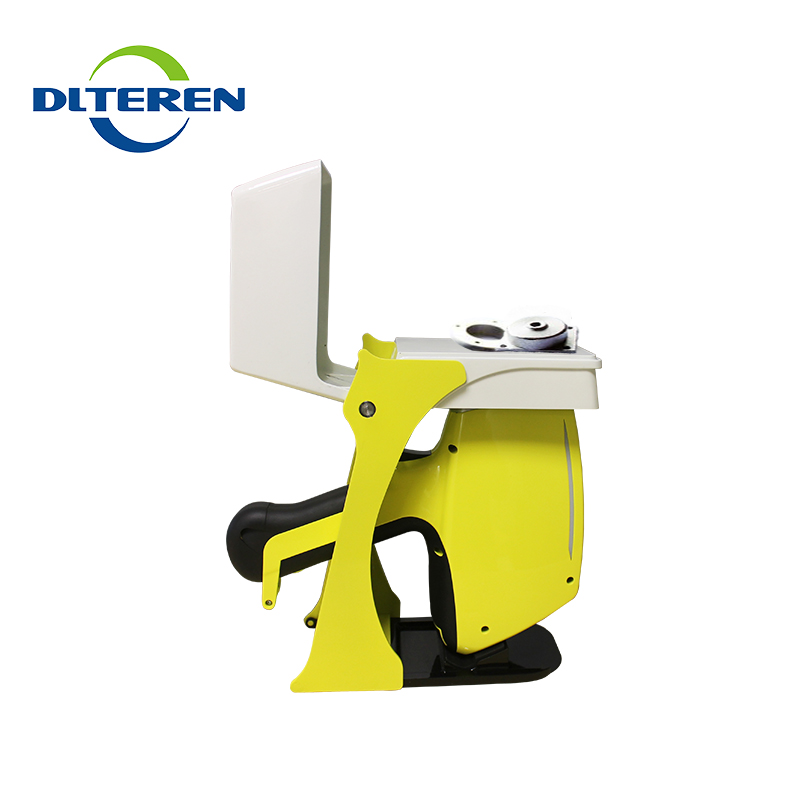

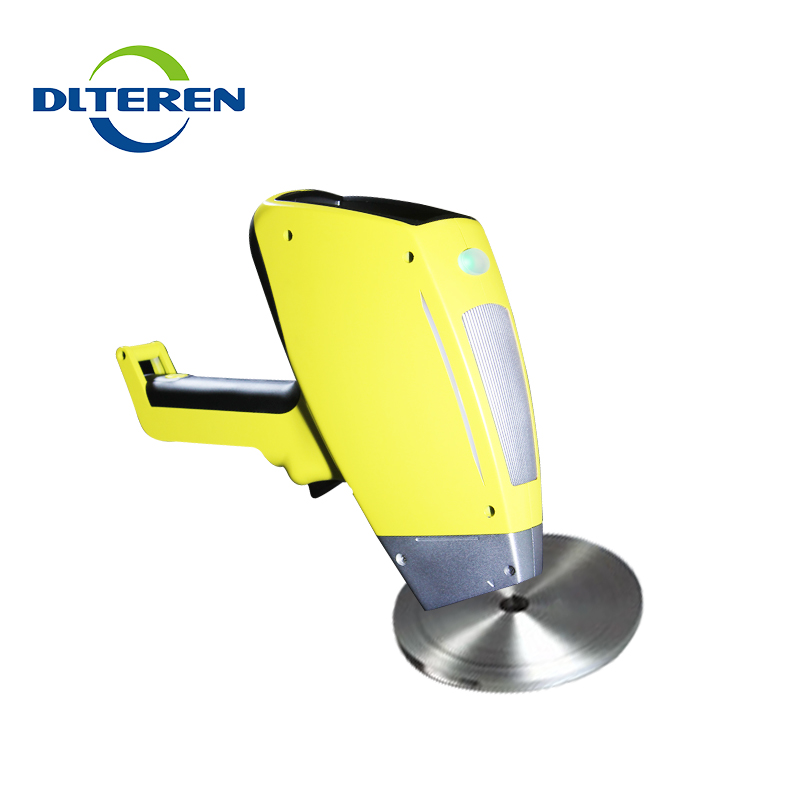

Quantity assured handheld alloy analyzer different types metal and ore analyzer

Product data

Weight:

1.6Kg( with battery)

DImensions:

254x79×280mm

Excitation source:)

50KV/200HA maximum pipe pressure pipe flow can be adjusted freely, Ag target (standard), Au, W, Rh,target (optional

Detector:

1.BOOST Si-PIN detector for TrueX 800.

2.SDD detector for TrueX 860.

Range of detection:

All elements between Mg and U.

Display system:

1.Industrial resistive touch screen with screen size of 4.3.

2.Proprietary operating system softeare and sound waves.

3.Multiple languages including English and Chinese.

4.And it automatically adjusts display brightness according to the environment brightness.

Data processing:

1.32GB memory.

2.USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely

3.Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others(such as product description, origin and batch number.

Heat dissipation:

Equipped with a dedicated T-shaped radiator to dissipate the heat no need to wait for cooling of detector time again.

Safety:

1.Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature.

2.Waterproof, dust-proof and shockproof suitcase

3.LANScientific Safety Band

Power supply system:

1.Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods.

2.A single battery can last 8 hours.
