Overview:

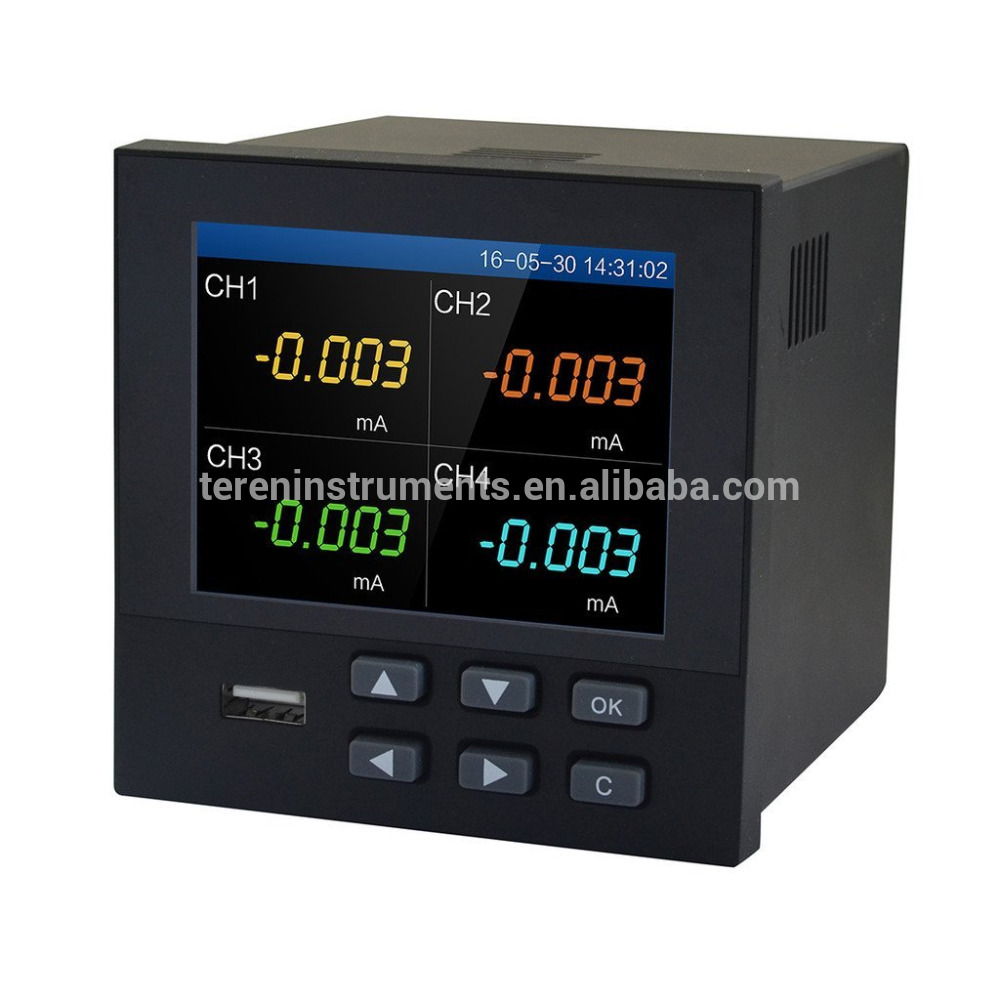

The paperless recorder set various industrial, measurement data in civil applications, display, processing, computing, alarming, and recording a variety of reports and other functions in it. It has a 18-channel analog signal input channel, 4-channel relay alarm output channel, 150mA distribution output channel (which can be accessed 6-way two-wire transmitter, or 2-way four-wire transmitter), an RS-485 communication interface it has a USB data dump interface.
Parameters:
Signal: (4~20)mA,(0~20)mA,(0~10)mA,PT100,Cu50,(1~5)V,(0~10)V,(0~5)V,B,E,J,K,S,T,R,N
Display: LCD display
Shape dimension:
Shape dimension:96mm×96mm×96mm
Opening Size:92mm×92mm
Thickness of mounted panel: 1.5mm~6.0mm
Electricity supply: (176~264)VAC,47~63Hz
Internal storage: 48M bytes Flash
External storage: U disk support (standard USB2.0 communication interface)
The maximum power consumption: 20VA
Relative humidity: (10~85)%RH(No condensation)
Operating temperature: (0~50)℃
Transport and storage conditions: Temperature (-20~60)℃,Relative humidity (5~95)%RH(No condensation)
Altitude:<2000m,Except for special specifications
