Wall mount ultrasonic flowmeter

  • Fixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100F
  • Fixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100F
  • Fixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100F
  • Fixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100F
Fixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100FFixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100FFixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100FFixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100F

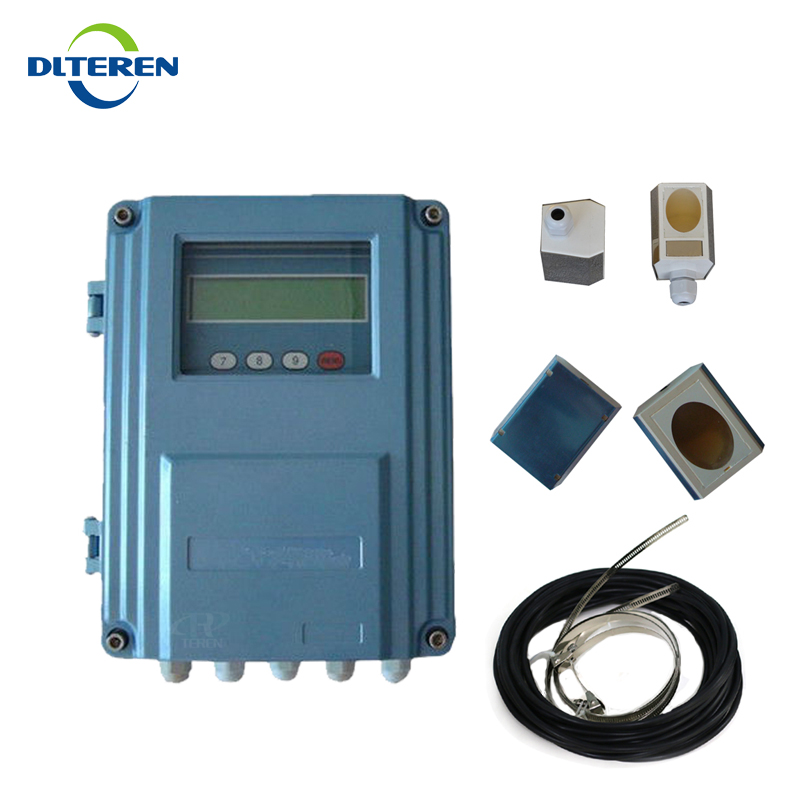

Fixed Ultrasonic Flow Meter For Liquid Monitoring DTI-100F

  • Model No.: DTI-100F
  • Accurancy: ±1.0%
  • Repeatability: ±1%
  • Output: RS232,RS484,4~20mA,GPRS/GSM
  • Product description:
  • INQUIRY


Item

Wall mount ultrasonic flow meter

Accuracy

Better than ±1.0 %

Repeatability

0.2%

Pipe Size

DN15mm~6000mm

Measurement Period

0.5S

Measurement Principle

Transit-time measurement principle

Display

LCD with backlight. 2x20 letters.

Output

One channel isolation 4-20mA or 0-20mA   active output.

Input

two channel three wire system PT100   platinum resistor input loop,to

make heat meter has the function of   displaying heat quantity.

Three channel 4-20mA input optional

Power supply

AC 85—264V or isolation DC 8-36VDC

Power Consumption

Less than 1.5W

Environment Temperature

-30°C~80°C

Environment Humidity

85% RH

Protection Class

IP65

Pipe Material

All metals ,most plastics, fiber glass ,etc,
