Belt Tension Tester

  • Digital Display Belt Tension Tester Testing Tools Belt Tension Gauge
  • Digital Display Belt Tension Tester Testing Tools Belt Tension Gauge
  • Digital Display Belt Tension Tester Testing Tools Belt Tension Gauge
  • Digital Display Belt Tension Tester Testing Tools Belt Tension Gauge
Digital Display Belt Tension Tester Testing Tools Belt Tension GaugeDigital Display Belt Tension Tester Testing Tools Belt Tension GaugeDigital Display Belt Tension Tester Testing Tools Belt Tension GaugeDigital Display Belt Tension Tester Testing Tools Belt Tension Gauge

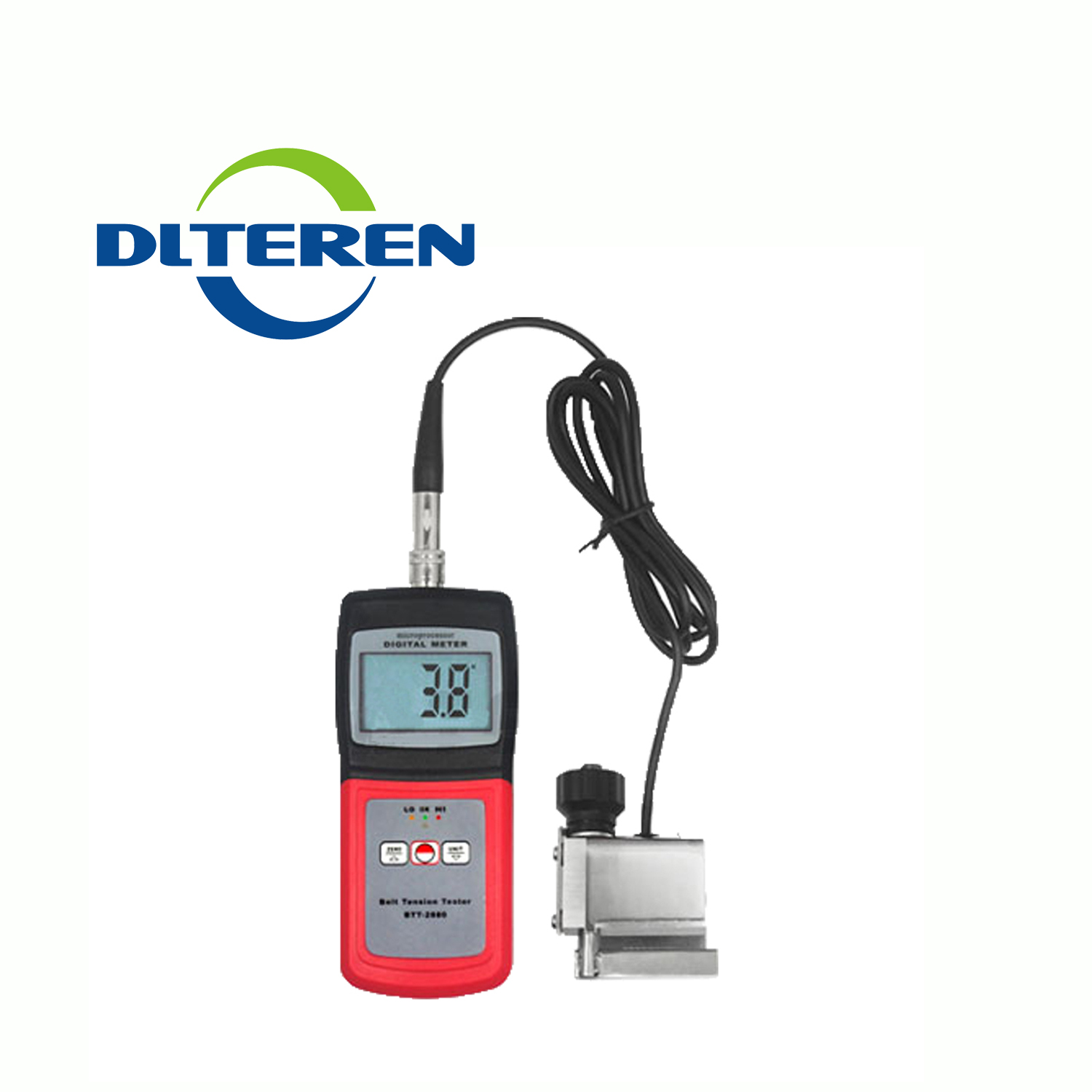

Digital Display Belt Tension Tester Testing Tools Belt Tension Gauge

  • Model Number: BTT-2880
  • Power Supply: 4 x 1.5 AAA Size (UM-4) Battery
  • Accuracy: +/- 5 % of full-scale
  • Data Output: USB, RS-232, Bluetooth
  • Product description:
  • INQUIRY

Applications:

Mainly used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires.Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing.



Features:


* This Belt Tension Tester used the exclusive Micro-computer LSI circuit  and crystal  time base to offer high accuracy measurement.

* It can be used to measure and adjust the tension of timing and auxiliary belts fitted  to motor vehicles and other machines.

* Tension can be displayed in a variety of standard and manufacturers' units.

* Tension limits can be set into the instrument, either manually or automatically.  During belt tension measurement and adjustment, the belt tension is displayed. A visual and audible indication of whether the tension is within or outside the set limits is also given. This avoids the user having to read the display whilst adjusting the belt.

* The selected tension limits, measurement units and calibration parameters are stored in The memory of the tester, and will be remembered even when the instrument is switched off and the batteries removed.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.


Display   4 Digits 10 mm LCD, With Colored LED Indication of High, Low and OK
  Measurement Range   0 ~ 750 N ( Newtons )
  0 ~ 120 lb ( Pounds )
  0 ~ 77 kg ( Kilograms )
  0 ~ 114 Seems
  Belt Width   Up to 36 mm
  Overload Alarm   750 N
  Maximum Load   850 N
  Resolution   ± 1 Newton or 1 Least Significant Digit of Other Units
  Accuracy   ± 5 % of full-scale
  Data Output   USB, RS-232, Bluetooth
  Audible Warning   Piezoelectric Sounder
  Power Supply   4 x 1.5 AAA Size (UM-4) Battery
  Dimensions   135 x 62 x 33 mm
  Weight   335 g ( Not Including Batteries )
