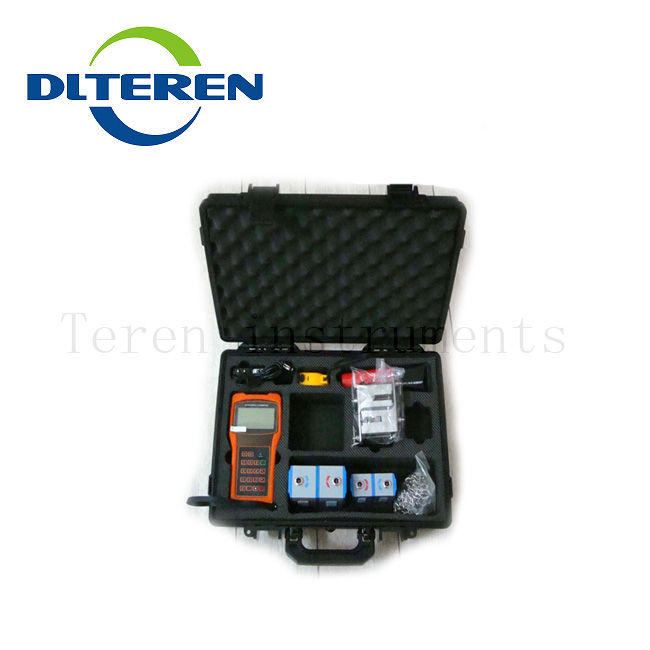

Hand held ultrasonic flowmeter

Cheaper Digital Ultrasonic Flow Meter

Accuracy:±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration
Velocity: ±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional
Repeatability:0.2%
Transducer Cable:Standard 2x30' (10m), optional 2x1,500' (500m)
Product description:
INQUIRY

The Teren-DTI-200H flowmeters operate on the ultrasonic pulses transit time difference principle. The great advantage is the mechanical installation, because it is not necessary to cut the pipe. The sensors are simply clamped on the outer pipe surface, for this reason the pressure and the liquid aggressiveness to be measured are not a problem for the flowmeter. The system measures in a bidirectional way and is suitable for clean or slightly dirty liquids.

Measuring Accuracy	Flowmeter/Calorimeter: Better than 1% ; Water meter: Better than 2%;
Repeatability	Better than 0.2% or 0.5%
Velocity	±0.03~±105ft/s(±0.01~±32m/s),bi-ditectional
Flow Type	Water,sea water,industrial water ,oil liquid,sewage and single liquid available for ultrasonic
Pipe Material	Steel,stainless steel,cast iron,copper,PVC,aluminum,glass reinforced plastics or other compact pipe and lined pipe allowed
Liquid Temp	32 F~320 F (0 C~160 C)
Output Interface	OCT,RS232
Battery and Power	3AAA Ni-H built-in batteries, when fully recharged , it will last over 12 hours of operation. 90V-230VAC for the charger
Pipe Size	1/2”~240”(DN15mm~6000mm)
Housing	ABS
Display	3.5”, 320x240pixel, 65536 colours
Keypad	8 pushing buttons
Clamp-on Transducers	S1 type-suitable for pipes from DN15 to DN100 (0~70°C) M1 type-suitable for pipes from DN50 to DN800 (0~70°C) L1 type- suitable for pipes from DN300 to DN6000 (0~70°C)
Clamp-on Transducers Mounted On Metric Frame	S1F (HS) type-suitable for pipes from DN15 to DN100 (0~70°C) M1F (HM) type-suitable for pipes from DN50 to DN800 (0~70°C)
Clamp-on Transducers For High Temperature	S1H type-suitable for pipes from DN15 to DN100 (0~160°C) M1H type-suitable for pipes from DN50 to DN800 (0~160°C)
Totalizer	7 digits for positive, negative and net flow
Data Logger	Max 16GB SD can store up to 10 years records

Q:How long will you get our reply?

A: We will contact you as soon as possible but within 12 hours.

Q: What certificates do we have ?
A:We have the certification of ISO,CE and SGS etc.,we could send them to you by email.

Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality with reasonable price.

Q:Could you provide me the shortest lead time?
A:We have inventory for standard models. Please tell me your detailed requirements, we will send to you as early as we can.

Q: How soon can we arrange your production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately.

Q:In what area can your products be used?
A:Teren ultrasonic flow meters and ultrasonic water meters are widely applicable to water supply and drainage,industrial process control,sewage and plant effluent treatment,agricultural irrigation,etc.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-15 days , it is according to quantity and your requirements.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample but not free charge.
